A Combo Box field will add a dropdown menu to your document. This article will cover the basics of adding this field.
If you don't have Soda PDF yet, you can purchase it here.
Soda PDF Desktop
Step 1 - Choose the Combo Box feature
- Open the Forms Tab.
- Click on Combo Box.
Step 2 - Place the field on your PDF
You will see the outline for the combo box appear on your document. You can position it wherever you would like.
-
Click anywhere in your file to place the box.
- Hold down your left mouse button and drag the cursor to resize the field as you place it.

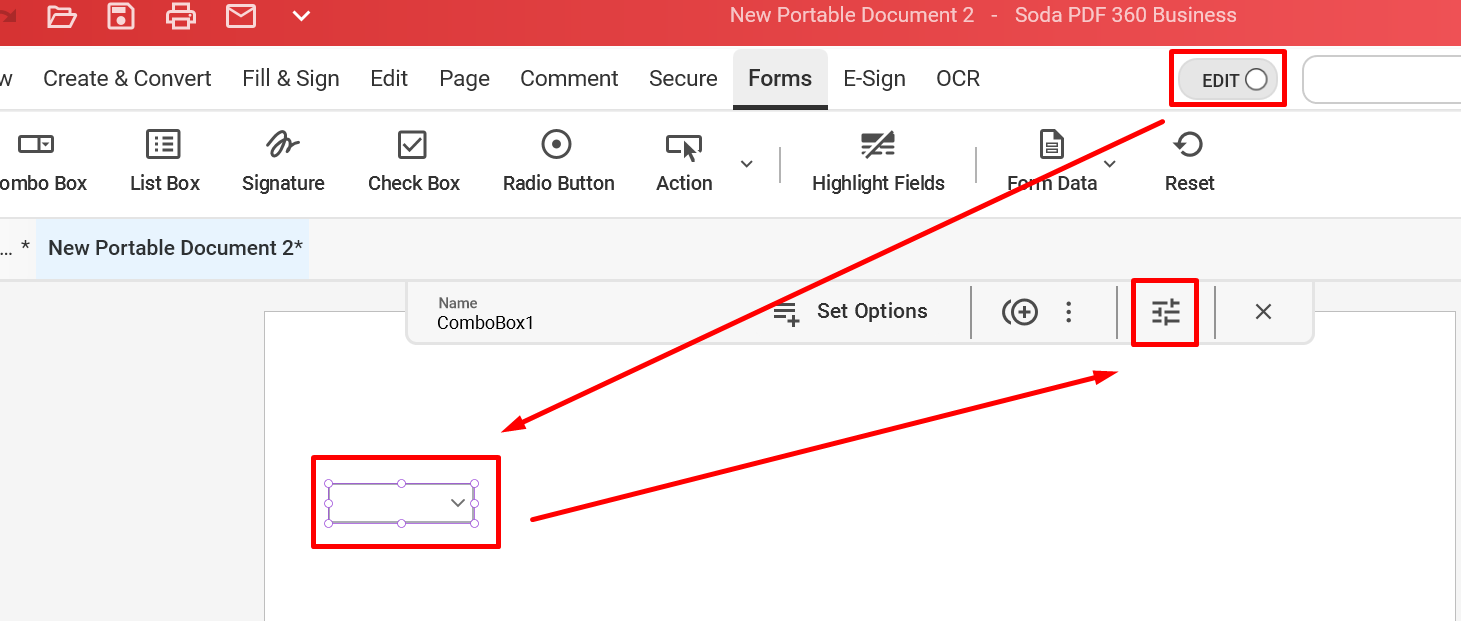

Step 3 - Set your Combo Box properties
This article will not go into detail about most options. Click here for a full list of all form field properties, including how to set up calculations for your dropdown.
- Switch to Edit Mode.
- Select the Combo Box.
- Click the Properties icon.

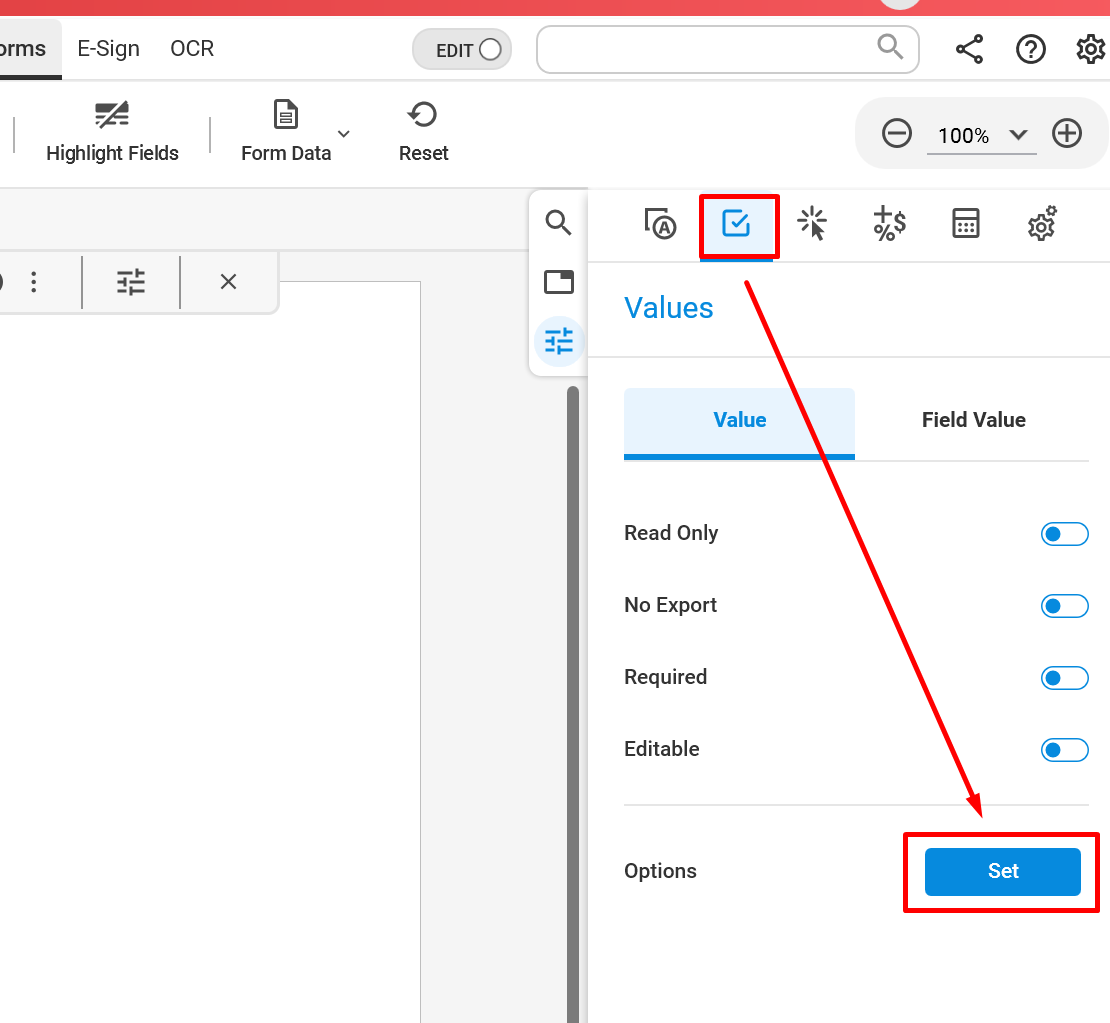

Step 4 - Choose Value List Option
- Open the Values Tab.
- Click on Set next to Options.

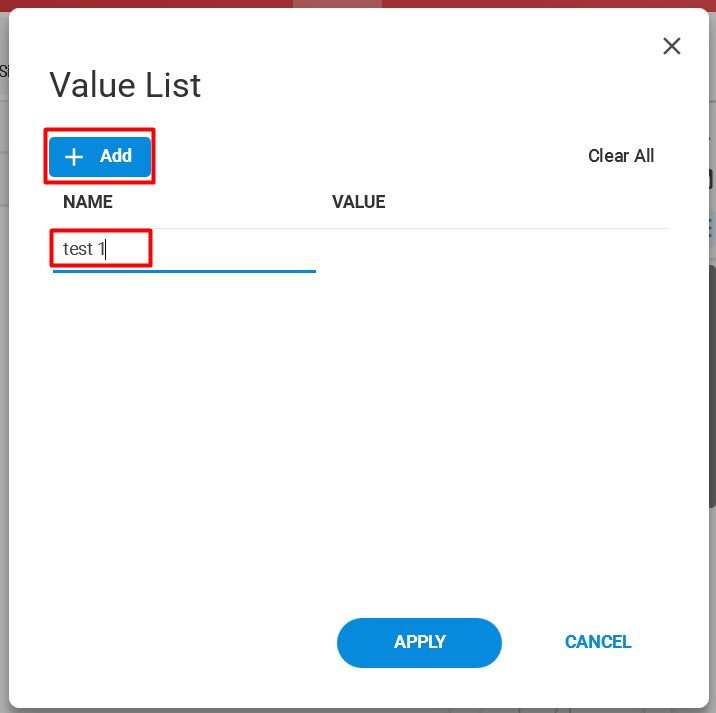

Step 5 - Add Values
You can add values to the list for your users. You can add the public-facing Name and customize the behind-the-scenes Value name.
- Click Add.
- Type your value name.
- Click anywhere else to confirm.
- Repeat until all values are added.
Step 6 - Edit Public Name and Value Name
The Name column is what your user will see. Under Value you can set a different value name for data purposes.
- Double-click on the name you want to update.
- Type into the box.
- Click anywhere else to confirm.

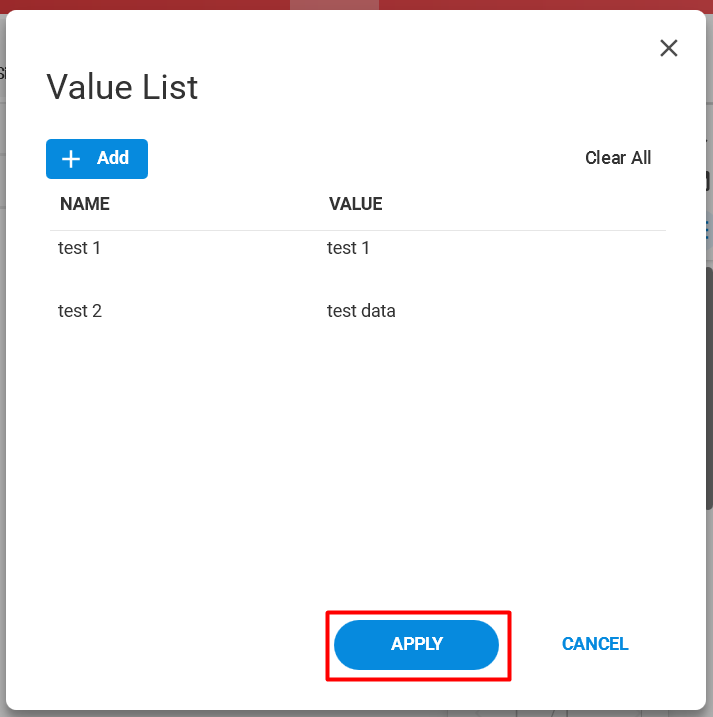

Step 7 - Confirm the new value list
- Click Apply to confirm your new list.

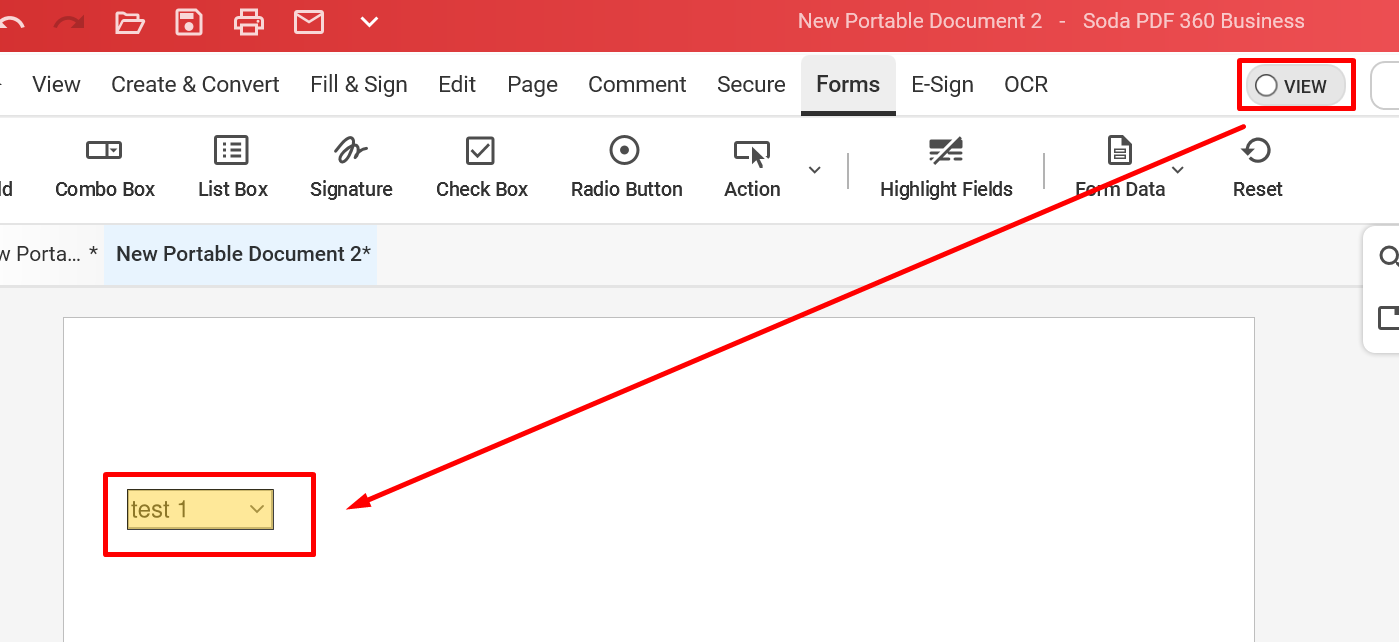

Step 8 - Test the Combo Box
- Switch to View mode.
- Click on the box.

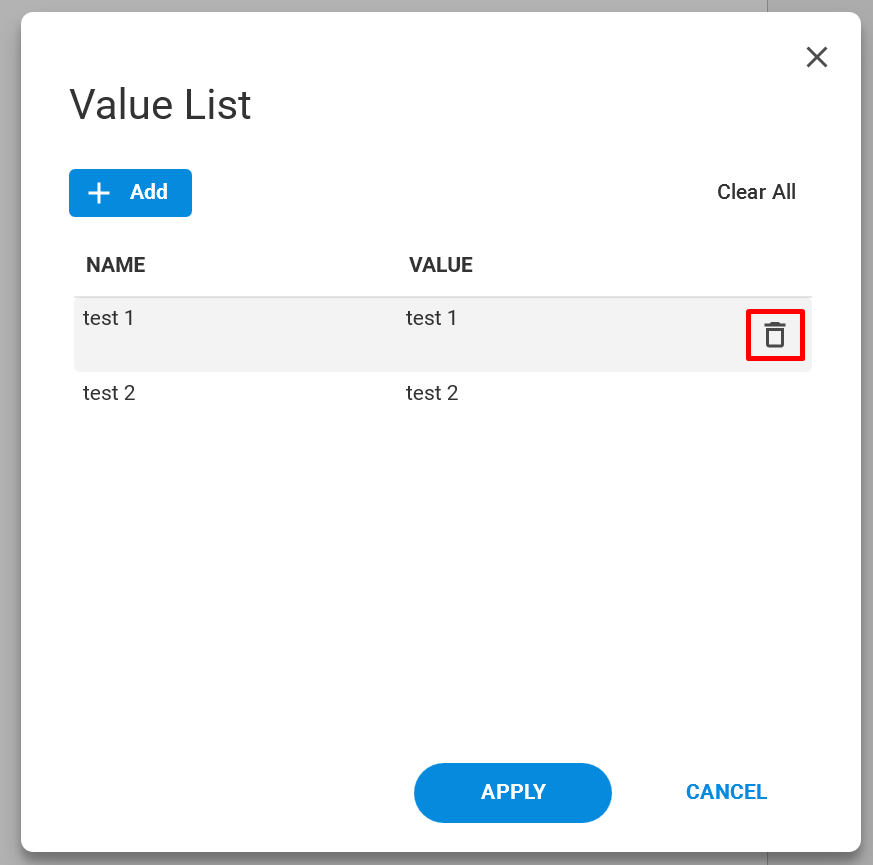

Bonus Step - Deleting a value
- Click on the bin icon.

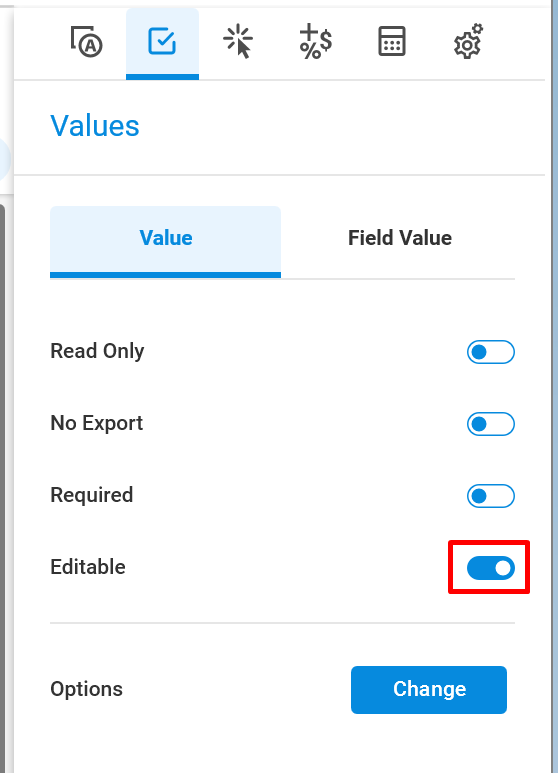

Bonus Step - Editable Value
If you are working with a Combo Box (Dropdown Menu) you can provide users the option to edit dropdown entries, adding their own.
- Toggle the switch next to Editable.

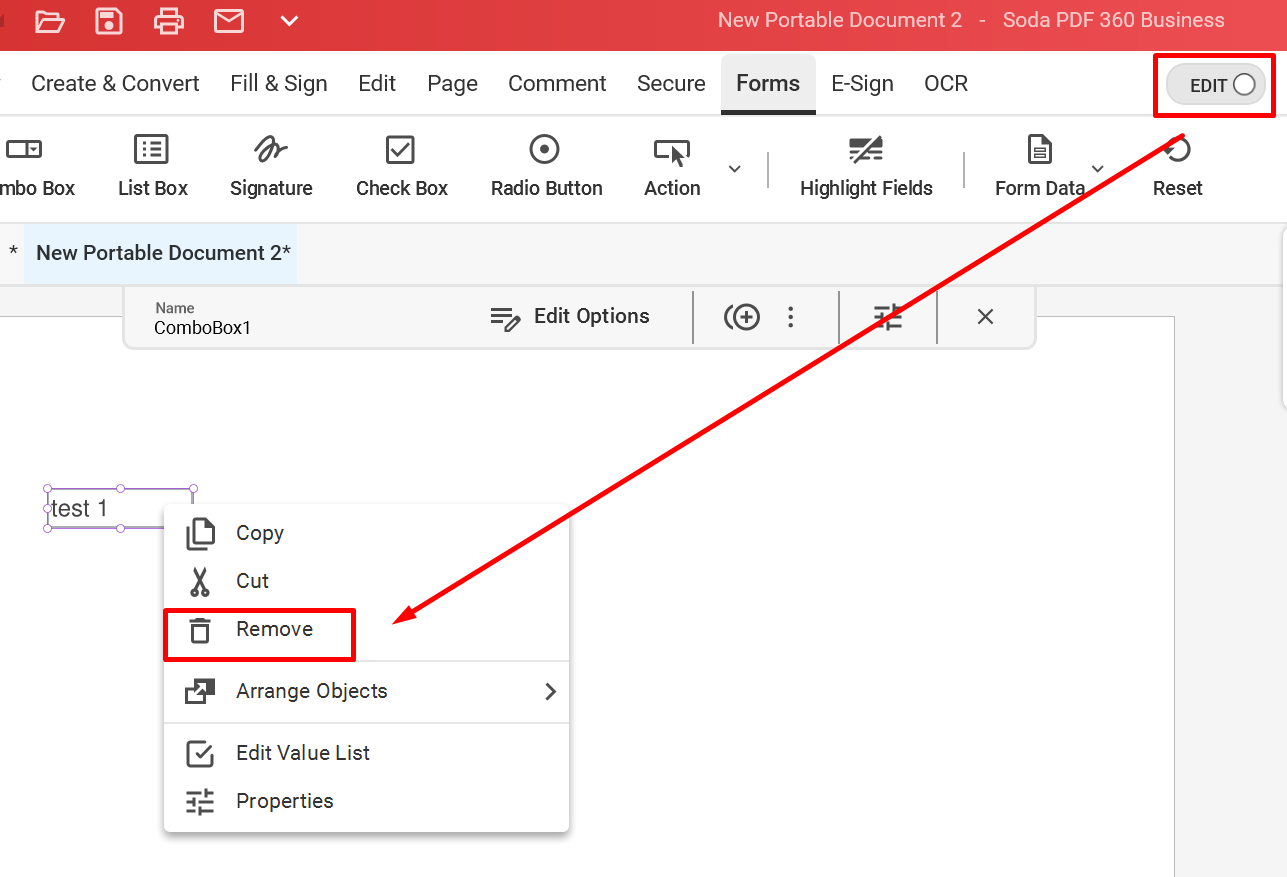

Bonus Step - Deleting a Combo Box
- Switch to Edit Mode.
- Right-click on your form field.
- Select Remove.
